| 型号 | 文档 | 功率 | 输出电压 (VDC) | 输出电流 (A) | 输入电压 (VAC) | 工作温度 (oC) | 冷却方式 | 尺寸 (mm) |
|---|---|---|---|---|---|---|---|---|
| LDC240-12P |  | 240 | 12 | 15 | 90 - 264VAC; 110 - 345VDC |
-40 to 70 | Convection | 40 x 110 x 115 |
| LDC240-36P | | 240 | 36 | 7.5 | 90 - 264VAC; 110 - 345VDC | -40 to 70 | Convection | 40 x 110 x 115 |
| LDC240-36 | | 240 | 36 | 7.5 | 90 - 264VAC; 110 - 345VDC | -40 to 70 | Convection | 40 x 110 x 115 |
| LDC240-12 | | 240 | 12 | 15 | 90 - 264VAC; 110 - 345VDC | -40 to 70 | Convection | 40 x 110 x 115 |
| LDC240-72P | | 240 | 72 | 3.3 | 90 - 264VAC; 110 - 345VDC | -40 to 70 | Convection | 40 x 110 x 115 |
| LDC240-48P | | 240 | 48 | 5 | 90 - 264VAC; 110 - 345VDC | -40 to 70 | Convection | 40 x 110 x 115 |
| LDC240-24 | | 240 | 24 | 10 | 90 - 264VAC; 110 - 345VDC | -40 to 70 | Convection | 40 x 110 x 115 |
| LDC240-48 | | 240 | 48 | 5 | 90 - 264VAC; 110 - 345VDC | -40 to 70 | Convection | 40 x 110 x 115 |
| LDC240-72 | | 240 | 72 | 3.3 | 90 - 264VAC; 110 - 345VDC | -40 to 70 | Convection | 40 x 110 x 115 |
 |

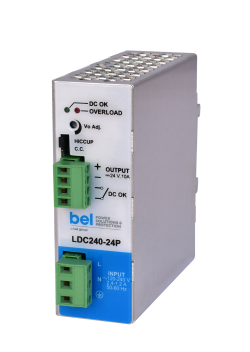

ldc240LDC240系列是一种单相超紧凑型,带有源功率因数校正的双导轨安装开关电源，非常适合多种
应用场合。它体积小，效率高，可靠性好，安装方便，是各类工业应用的理想选择。LDC240
系列是一级隔离装置设备，适用于SELV和PELV电路（最高48 VDC的模块），设计用于安装在
DIN导轨上，并安装在保护外壳内。 说明:
特性:
|
